x96 mini Iptv subscription Media Player Set Top Box Smart 4K Android Tv Box
|CPU||Allwinner H616 Quad Core ARM Cortex A53|
|WiFi||IEEE 802.11 b/g/n/ac|
|Moudle||Plastic : Black Color|

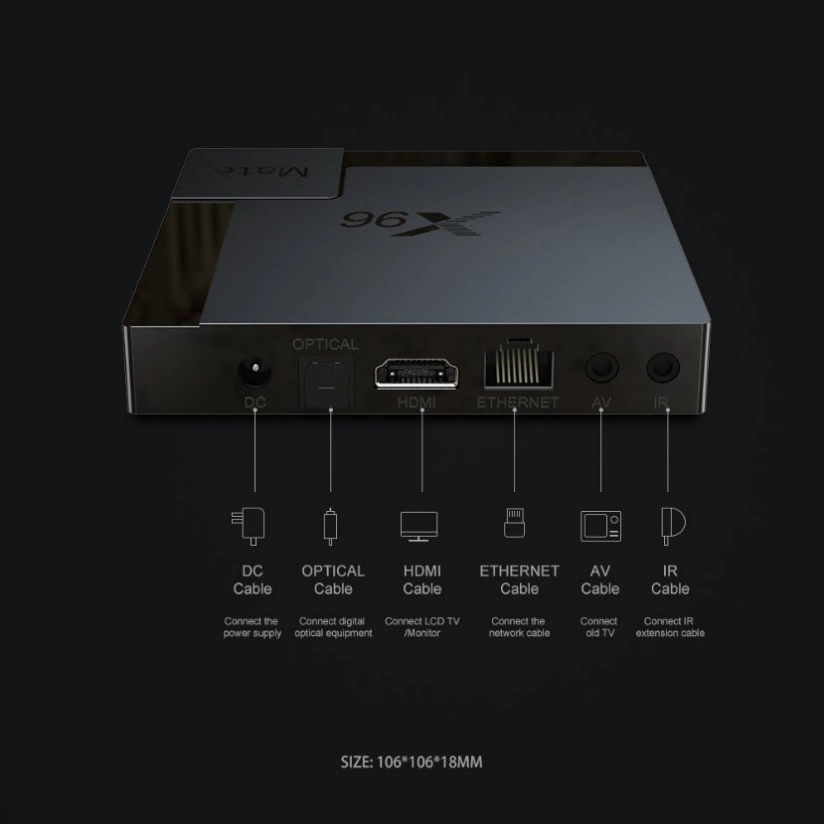

|I/O||1*HDMI||4K*2K UHD Output, HDMI 2.0A|
|1*AV OUT||480i/576i standard definition output|
|2*USB||1 * USB 3.0 ; 1*USB 2.0|
|1*IR Reciver||Remote Reciver Connect|
|1*RJ45||Ethernet Interface;Support 10/100M|
|1*TF CARD||Support 4GB/8GB/16GB/32GB/64GB|
|Video|| Video Engine (AVE) with dedicated hardware decoders and encoders|
Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding
- VP9 Profile 2 up to 4Kx2K@60fps
- H.265 Main10@L5.1 up to 4Kx2K@60fps,or 6K@30fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 BP/MP/HP@L4.2 up to 4Kx2K@30fps
- H.263 BP up to 1080P@60fps
- MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496)
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- Xvid up to 1080P@60fps
- Sorenson Spark up to 1080P@60fps
- VP8 up to 1080P@60fps
- AVS/AVS+ JiZhun Profile up to 1080P@60fps
- WMV9/VC1 SP/MP/AP up to 1080P@60fps
- JPEG HFIF file format up to 45MPPS
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
|Audio||Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing|
-Two audiio digital-to-analog(DAC) channels
-Support 16-bit and 20-bit sample rate
-8kHz to 192kHz DAC sample rate
-95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms
-One128*24-bits FIFO for DAC data transmit
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
|Language||English French German Spanish Italian etc multilateral languages|
|Online||Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.|
|Apps||Apps download freely form android market,amazon app store etc.|
|Medium||Local Media playback,Support HDD, U Disck ,TF Card .|
|Talk online||Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc|
|Others||Support Email,office suit etc.|
Support DLNA function
Support 2.4G wireless mouse/keyboard
|Qty per unit packing||1pc|
|Unit packing: (LxWxH)||189*137*55(MM)|
|Unit packing (G.W.)||400G|
|Qty per export carton||20PCS|
|Export carton (WxHxL)||395*290*295CM|
|Export carton (G.W.)||8.6KG|
|1,HDMI cable *1|
|2,IR Remote *1|
|3,User Manual *1|
|4,Package box *1|
|5,Power adapter *1|
1. logo printing on housing
2. Customize package
3. Software Customization: Booting image, UI, APP, kodi Function… and so on
1. PCBA desgin
2. Housing desgin
3. Software Customization: Booting image, UI, APP,kodi Function… and son on
Q1: Are you trading company or manufacturer ?
we are manufacturer and built long-tern business relationship with clients from France, Poland, Italy, USA, Canada and so on.
Q2:How about sample policy?
Sample coule be send if you require, freight charge should pay by your side.
Q3:Which shipping way is available?
The goods can send by sea ,by air ,By express (DHL,UPS,FEDEX,TNT,EMS) to your door.,we will provide you a tracking number after sent out the goods.
Q4:Which payment way is workable?
Western Union, T/T ,Paypal
Q 5: Can I have my own customized product?
Yes, we can.
Q6. How about your delivery time?
Bulk order is 25-30 days after receipt 30% deposit.
Q7. Any guarantee for your products?
All of our products with 1 Year Warranty,never need to worry about the after-sale service,we will always be here to support your business
